I found these at my grandpa’s. Anyone know how to use them?
A torque wrench is a specialized hand tool designed to apply a precise amount of rotational force, known as torque, to fasteners such as nuts and bolts. It is an essential tool in mechanical, automotive, and engineering work where accuracy and safety are critical.
What Is a Torque Wrench?
A torque wrench allows users to tighten fasteners to a specific torque value, ensuring components are secured correctly without being over-tightened or under-tightened.
Key characteristics include:
- A long metal lever for controlled force application
- A calibrated scale or gauge showing torque values
- A handle grip for stability and comfort
- A socket head that fits onto nuts or bolts
Why Torque Accuracy Matters
Using the correct torque is crucial in mechanical assemblies, especially in engines and machinery.
Correct torque helps to:
- Prevent thread damage or stripped bolts
- Avoid component failure due to loose fasteners
- Ensure even pressure distribution
- Maintain engine safety and performance
Common Applications
Torque wrenches are widely used across many industries.
Typical uses include:
- Automotive engine assembly
- Cylinder head and wheel lug installation
- Industrial machinery maintenance
- Mechanical and engineering workshops
- Aviation and heavy equipment servicing
How a Beam-Style Torque Wrench Works

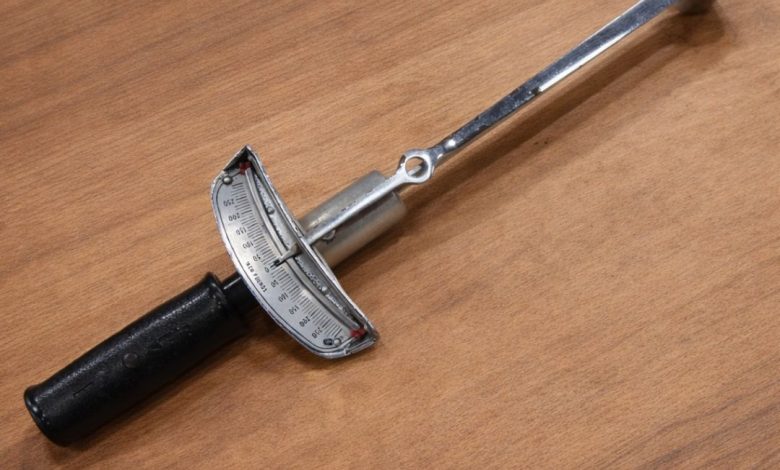

The torque wrench shown in the image is a beam-style torque wrench, one of the earliest and most reliable designs.
How it operates:
- Force is applied to the handle.
- The metal beam flexes slightly under load.
- A fixed pointer moves along a numbered scale.
- The reading indicates the exact torque being applied.
Advantages of Beam-Style Torque Wrenches
- No internal moving parts, increasing durability
- Does not require recalibration as often
- Immediate visual feedback
- Ideal for educational and mechanical reference use
Limitations to Consider
- Requires clear line of sight to read the scale
- Less convenient in tight or awkward spaces
- Slower compared to click-type torque wrenches
Conclusion
The torque wrench is a fundamental precision tool for anyone working with engines, mechanical systems, or structural fasteners. By ensuring fasteners are tightened to the correct specification, it plays a vital role in safety, reliability, and long-term performance.
